DMS

Ampere Rating :

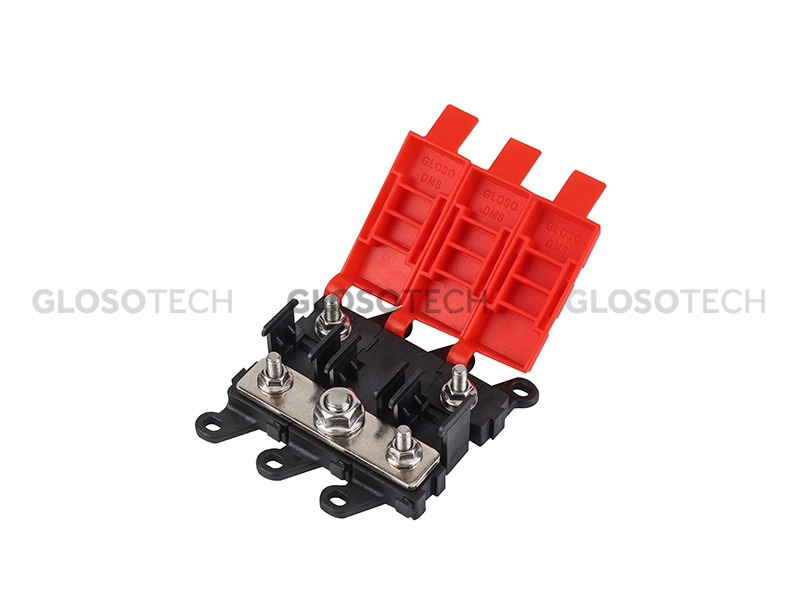

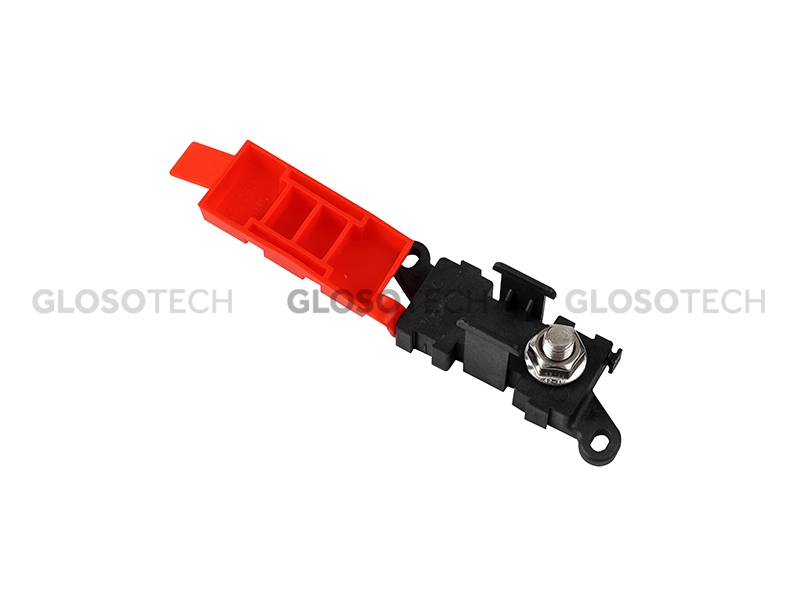

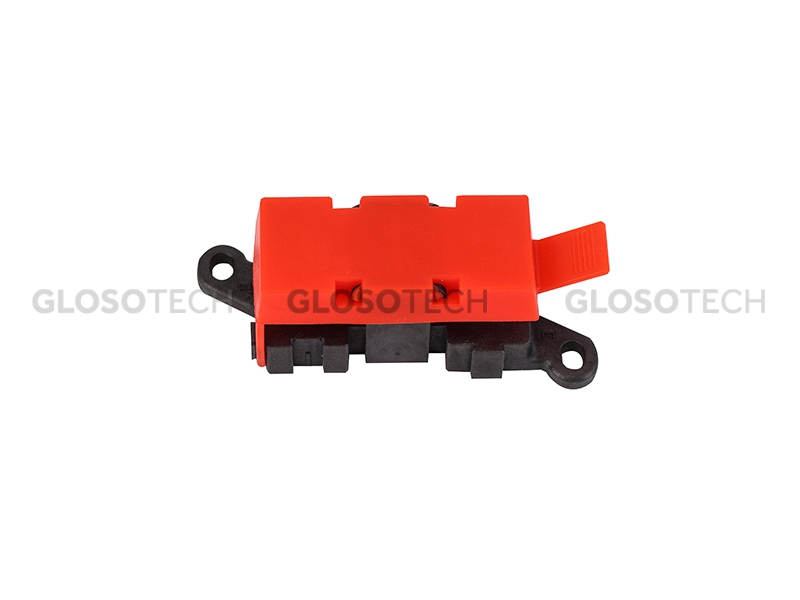

For main branch primary fusing.

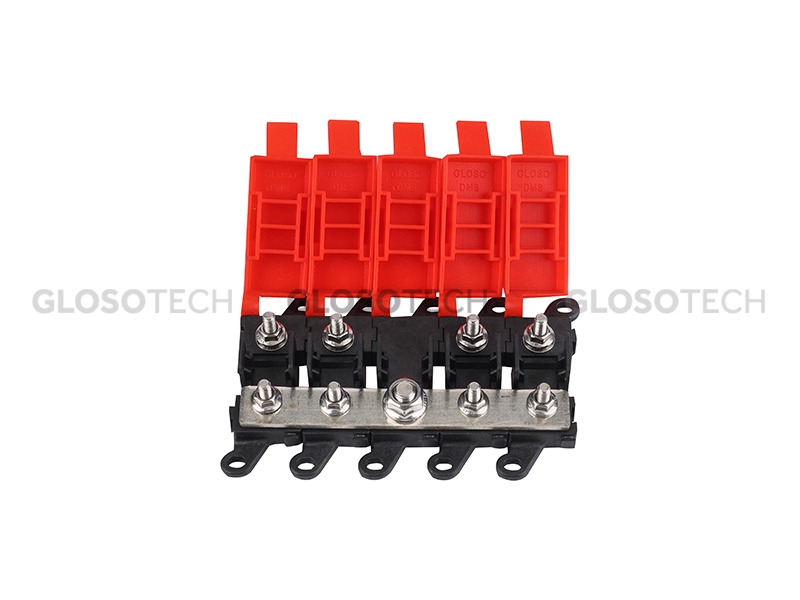

Configured to fit up to 6 MIDl fuses all bussed to a single input stud.

DMS
Part Number DMS-1
Description up to 200A
Rated Current up to 200A
Dimension Length: 53.9
Width: 24.3
Height: 25.9
Unit: mm
Body cap by Silicone rubber, 200℃ max.
base by PPS, 94V0 grade, 230C max.
Stud(input unit): M8 stainless Steel w/ hex flange nut.
Studs(midi fuse block): M5 Stainless Steel, flange nuts.
Body Color black
Cover Color red

no information

For main branch primary fusing.
Configured to fit up to 6 MIDl fuses all bussed to a single input stud.

DIMENSION AND TRIP CURVE

Length: 53.9
Width: 24.3
Height: 25.9
Unit: mm
