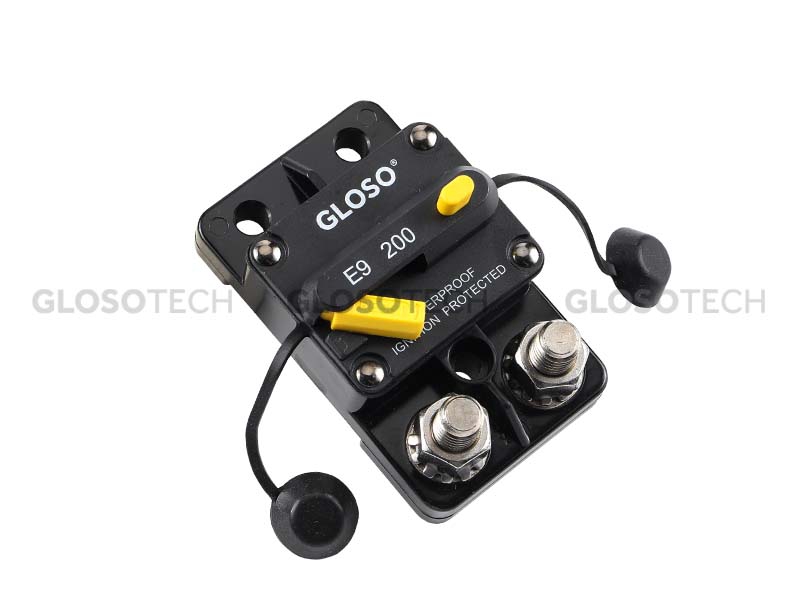

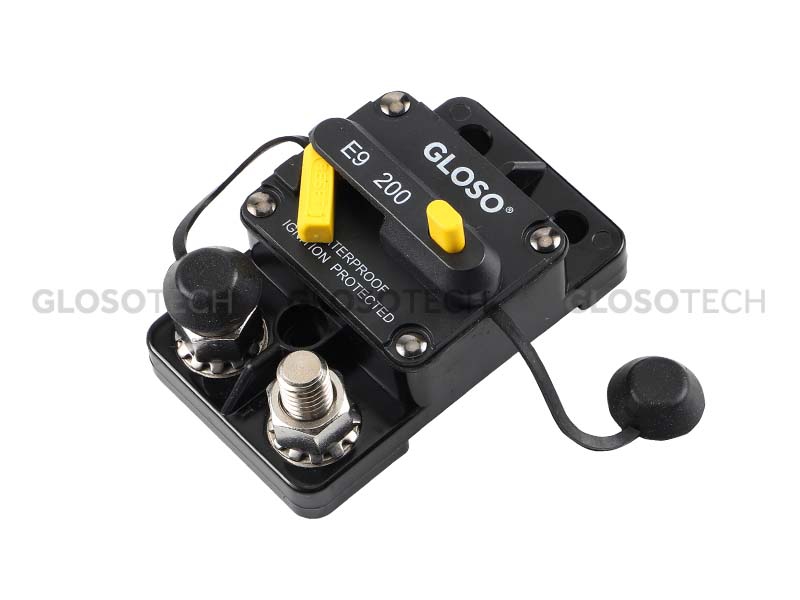

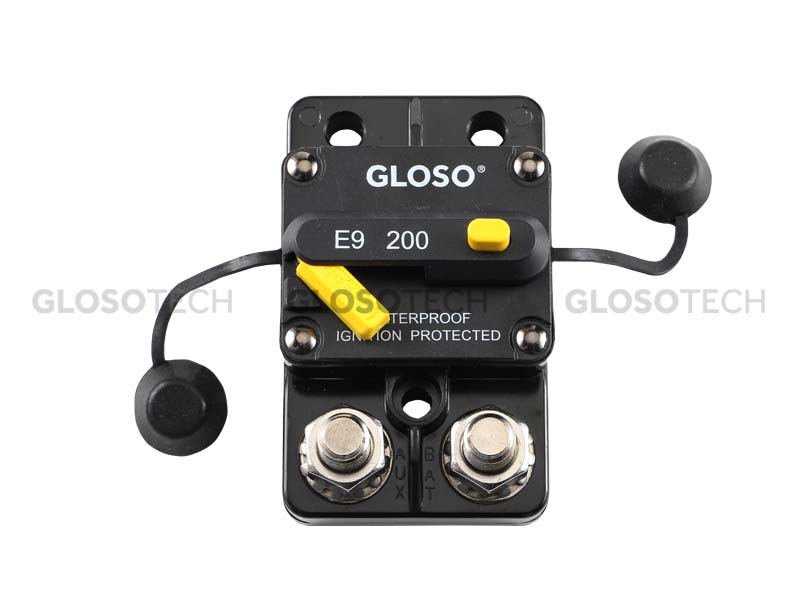

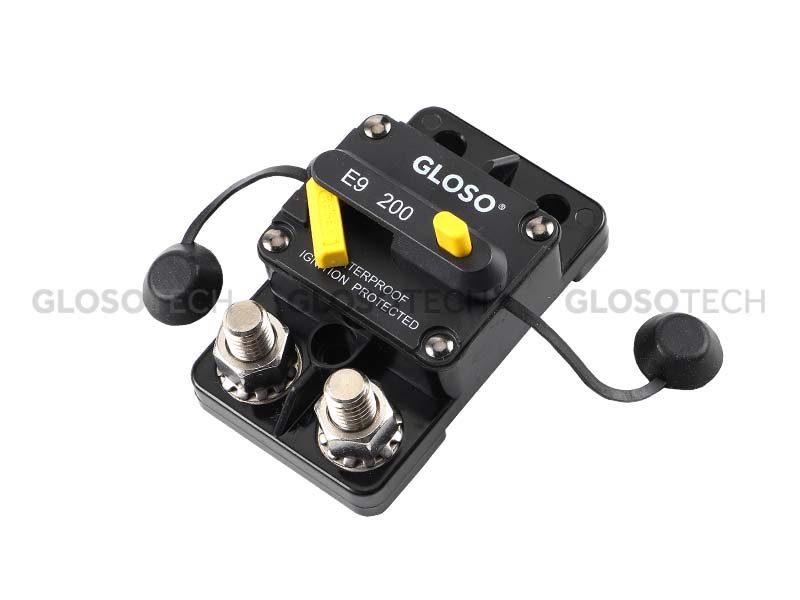

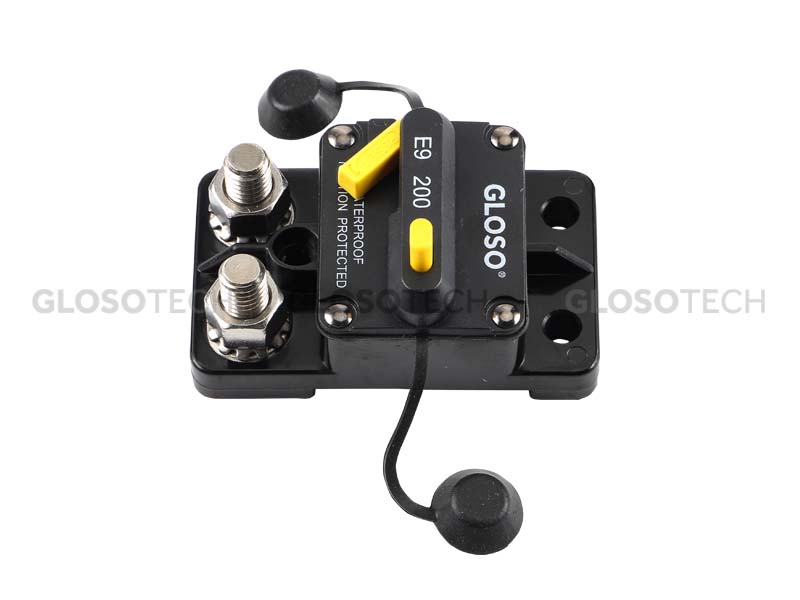

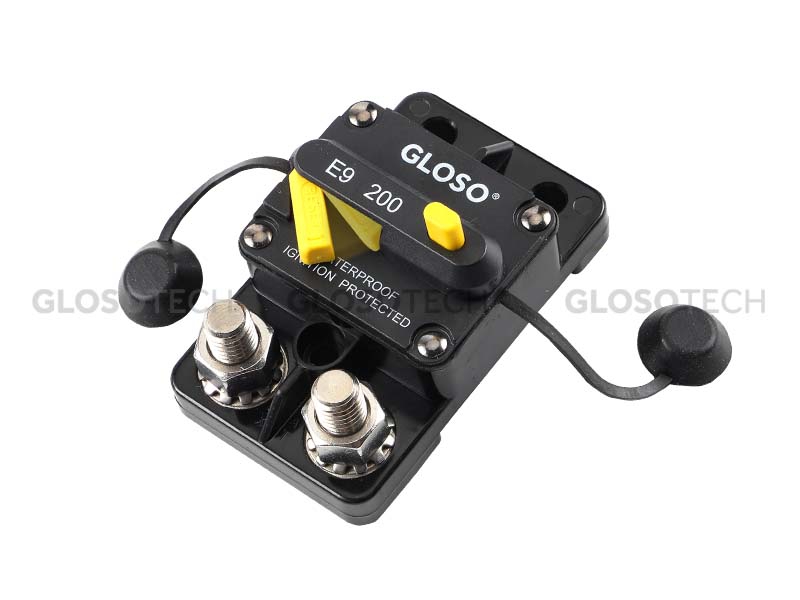

E9C-80A

Ampere Rating :


toggle switch
Hi-Amp Circuit Protector (Breaker)
3/8" Stainless Steel Studs, Parallel Easy Studs Surface Mount
Typically used in auxiliary and accessory circuits in truck, bus', RVs and marine applications. Others include battery charger and DC audio system.

E9C-80A
Part Number E9C-080B-99-9G
Description toggle switch
080A
Family Thermal Circuit Protector (Breaker)
Category E9
Series E9C
Voltage up to 72Vdc*
Rated Current 080A
Mounting Parallel Studs Easy Surface Mount
Reset Type T3, Manual Reset (Switchable)
Operating Temperature -32ºC (-25ºF) to 82ºC (180ºF)
Interrupt Capacity 2,500A @ 14Vdc (25-200A)
1,500A @ 48Vdc (25-200A)
1,500A @ 14Vdc (225A-300A)
* Consult Factory
Dimension Length: 80
Width: 48.5
Height: 44.4
Unit: mm
Weight 145 g
RoHS Y
Standard Pack 100
Regulatory Compliance Summary Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11; UL 1077*(test under UL1077 method)
Ignition Protected: SAE J1171;
Endurance: SAE J1625; SAE J553
Dielectric Strength: UL 1077*(test under UL1077 method)
Dust and Waterproof: IP67
Shock, Vibration, Corrosion, Humidity: Mil-STD-202
Termination 3/8" Stainless Steel Studs
Body UL-rated 94V0 thermoset plastic
Storage Temperature -34ºC (-30ºF) to 149ºC (300ºF)
Body Color Black
Cover Color Black

no information

no information

DIMENSION AND TRIP CURVE

Length: 80
Width: 48.5
Height: 44.4
Unit: mm
