L2

Ampere Rating :


rocker switch

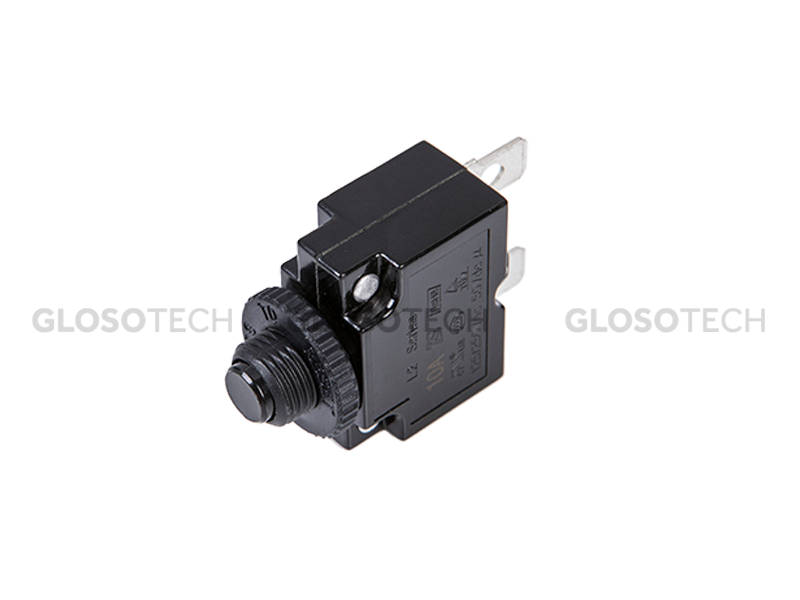

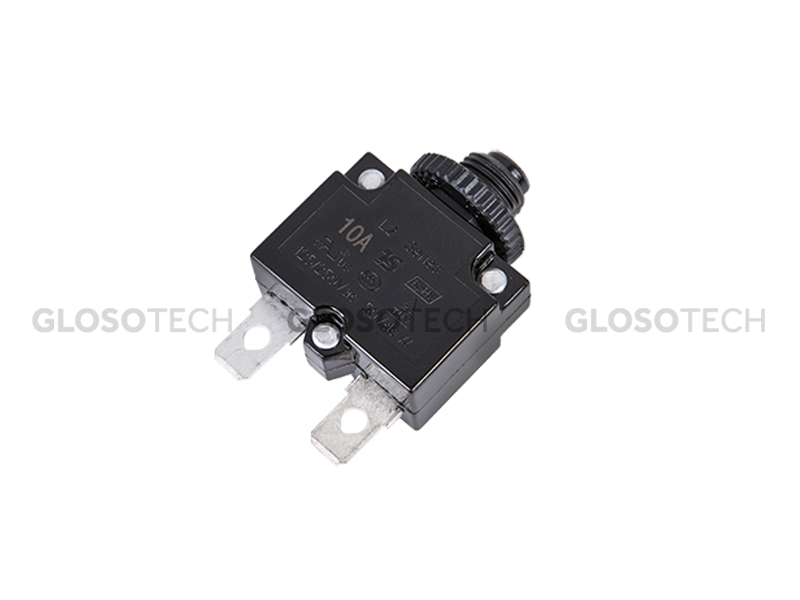

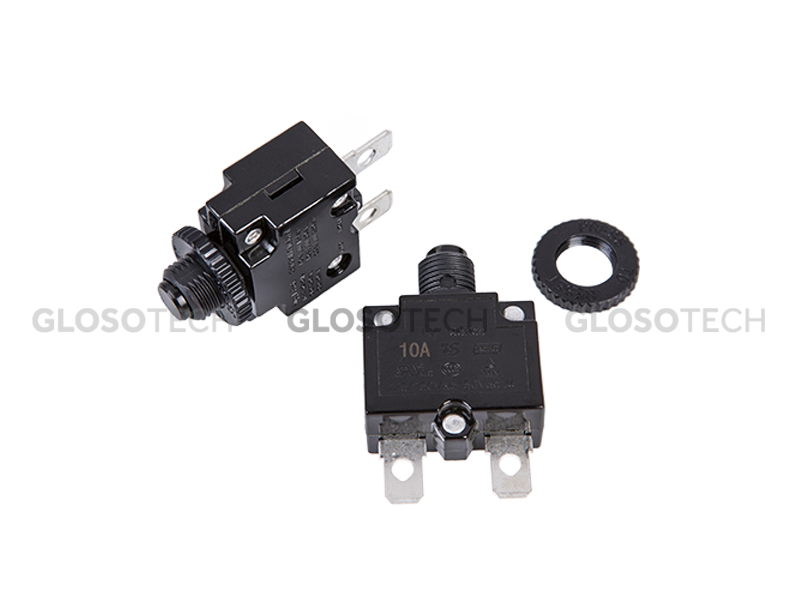

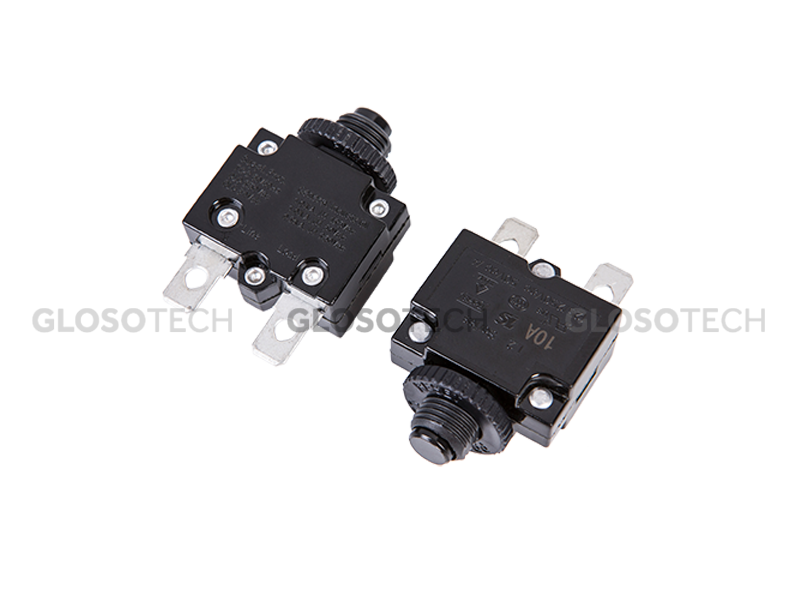

L2 is a compact, single pole, push-to-reset family of thermal circuit protector (breaker) designed to protect equipment.


Utilizing simple, precision design with few moving parts, these protectors offer cost effective, extremely reliable circuit protection with resistance against shock and vibration.

L2
Part Number L2-040-211-103
Description rocker switch
4A
Family Thermal Circuit Protector (Breaker)
Category L
Series L2
Voltage 125-250 Vac; 50 Vdc
Rated Current 4A
Mounting Front Panel Snap-in
Reset Type T3, Manual Reset
Operating Temperature -10ºC (14ºF) to 60ºC (140ºF)
Interrupt Capacity 1,000 A
Dimension 29.2 x 22.7 x 14.6 mm
RoHS Y
Termination 0.250" QC Tab; 90-degree bend; Screw Terminals

no information

no information

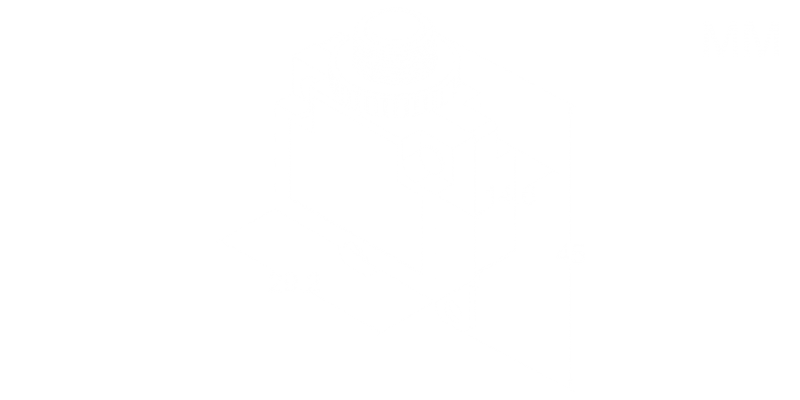

DIMENSION AND TRIP CURVE

29.2 x 22.7 x 14.6 mm
