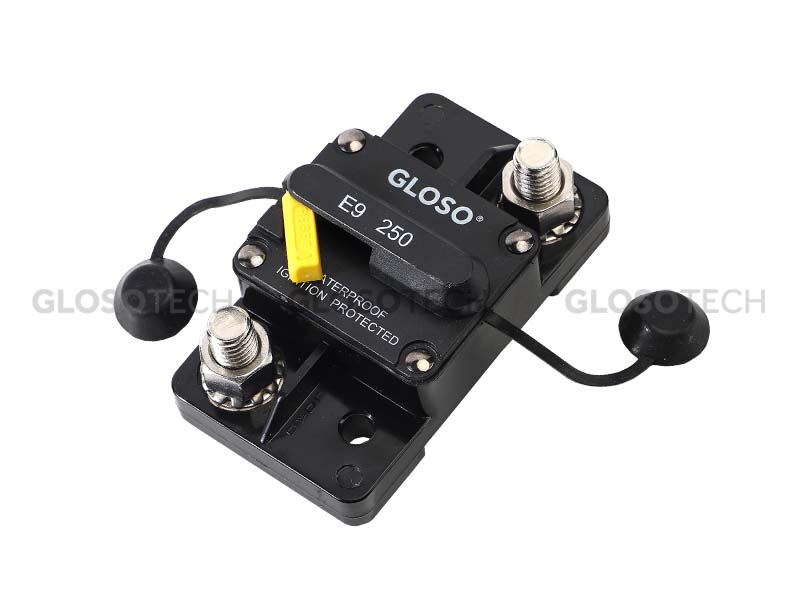

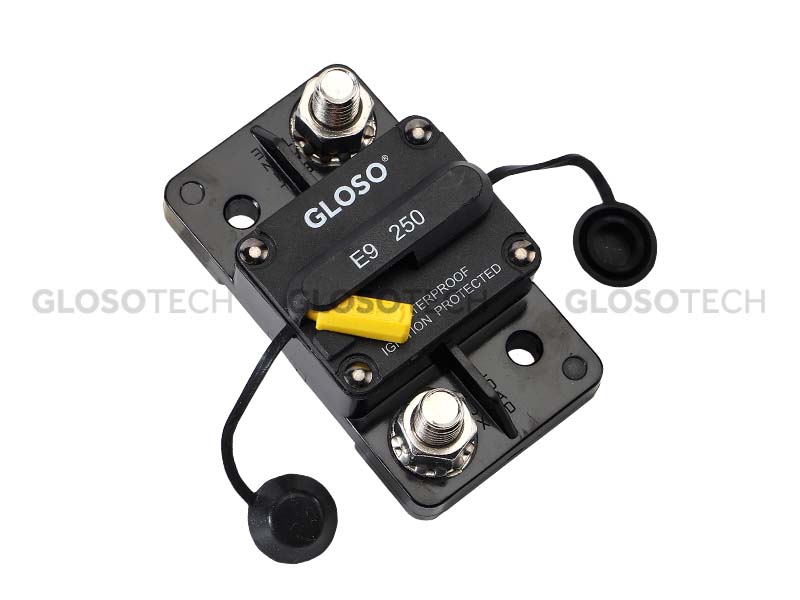

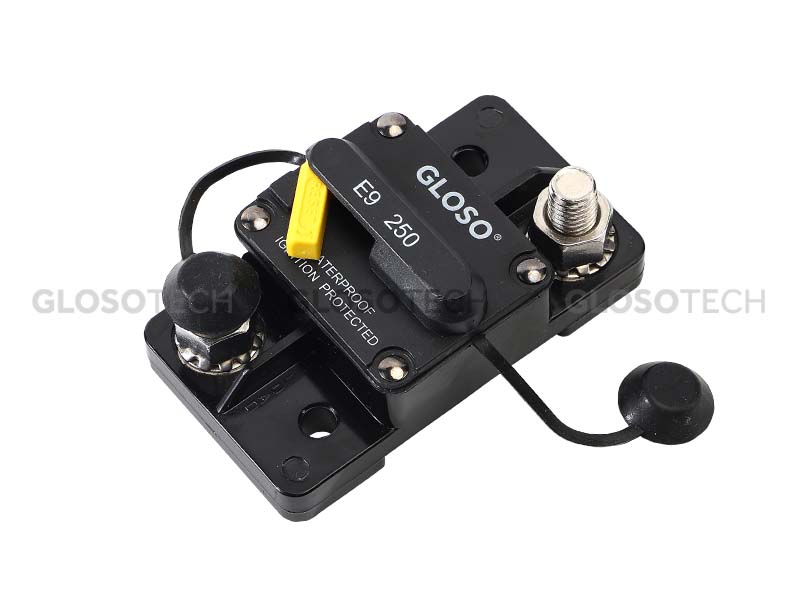

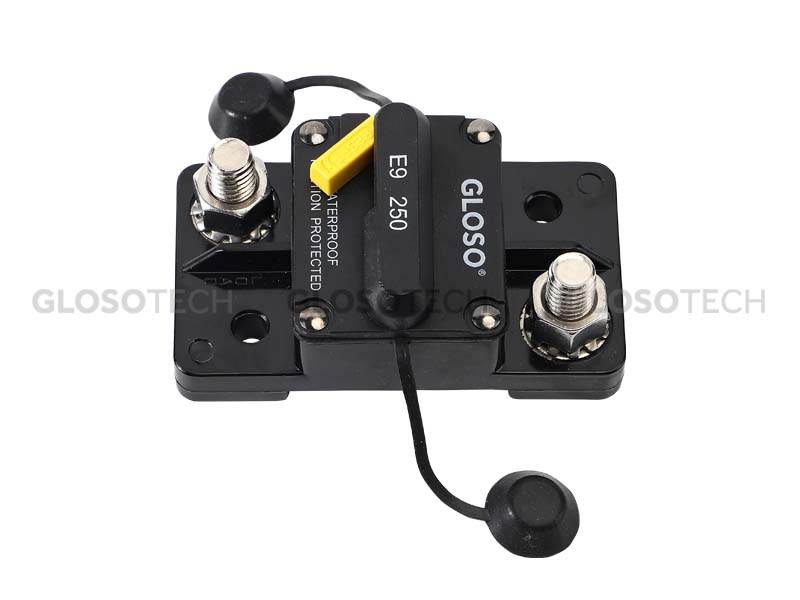

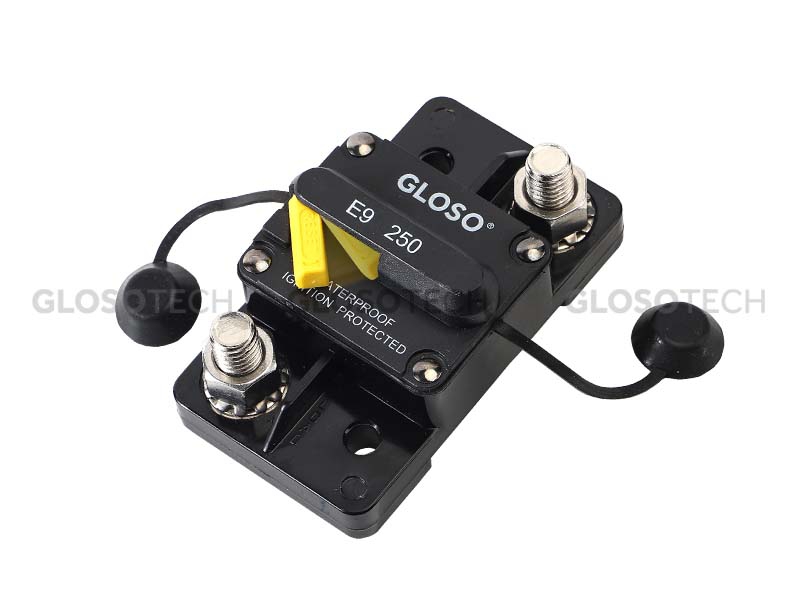

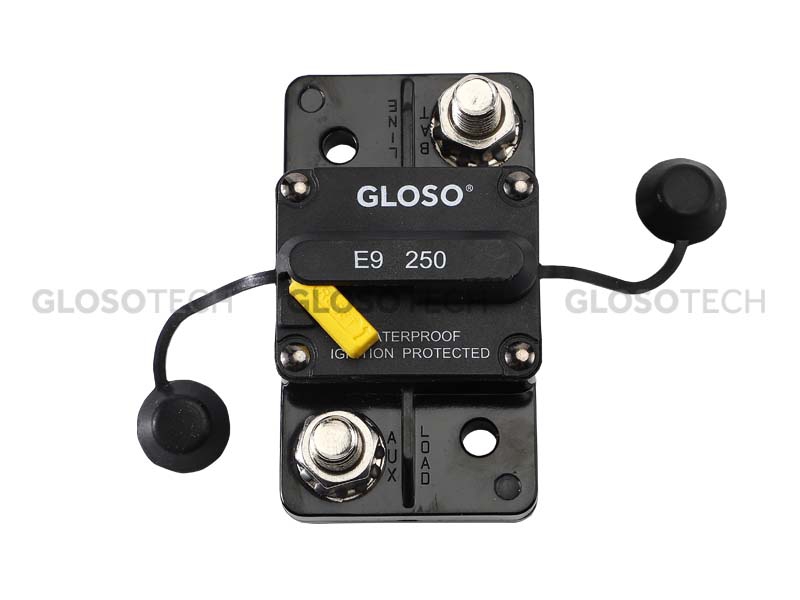

E92-150A |
||
|---|---|---|
| Part Number | E92-150B-99-9G | |
| Description |
toggle switch 150A |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E9 | |
| Series | E92 | |
| Voltage | up to 72Vdc* | |
| Rated Current | 150A | |
| Mounting | Wide Surface Mount | |
| Reset Type | T3, Manual Reset | |
| Operating Temperature | -32ºC (-25ºF) to 82ºC (180ºF) | |
| Interrupt Capacity |
2,500A @ 14Vdc (25-200A) 1,500A @ 48Vdc (25-200A) 1,500A @ 14Vdc (225A-300A) * Consult Factory |
|
| Dimension |
Length: 86 Width: 48.4 Height: 36.6 Unit: mm |
|
| Weight | 145 g | |
| RoHS | Y | |
| Standard Pack | 100 | |
| Regulatory Compliance Summary |
Interrupt Capacity: SAE J1625; SAE J553, ABYC-E11; UL 1077*(test under UL1077 method) Ignition Protected: SAE J1171; Endurance: SAE J1625; SAE J553 Dielectric Strength: UL 1077*(test under UL1077 method) Dust and Waterproof: IP67 Shock, Vibration, Corrosion, Humidity: Mil-STD-202 |
|
| Termination | 3/8" Stainless Steel Studs | |
| Body | UL-rated 94V0 thermoset plastic | |
| Storage Temperature | -34ºC (-30ºF) to 149ºC (300ºF) | |
| Body Color | Black | |
| Cover Color | Black | |
Length: 86
Width: 48.4
Height: 36.6
Unit: mm
