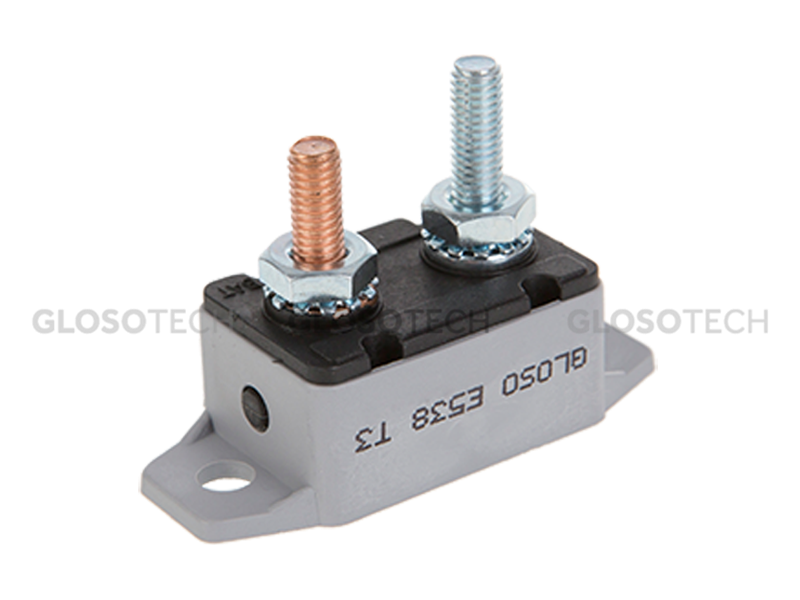

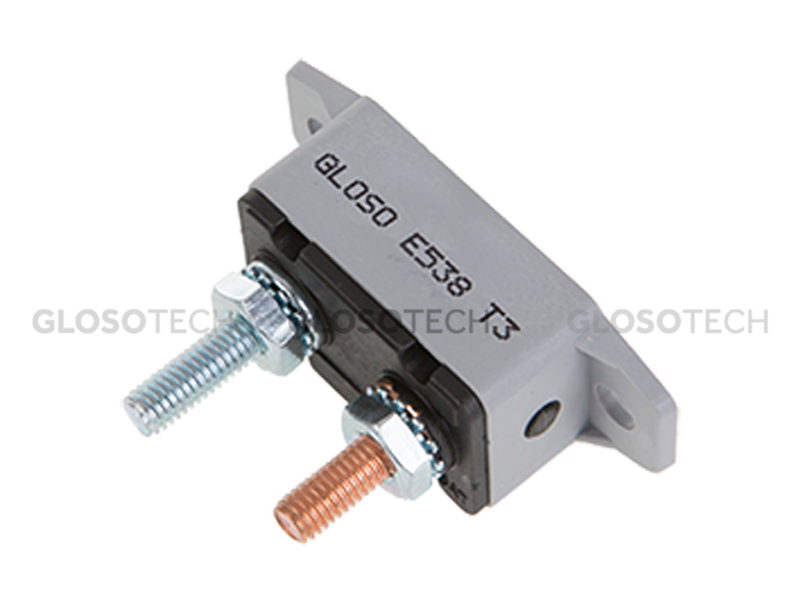

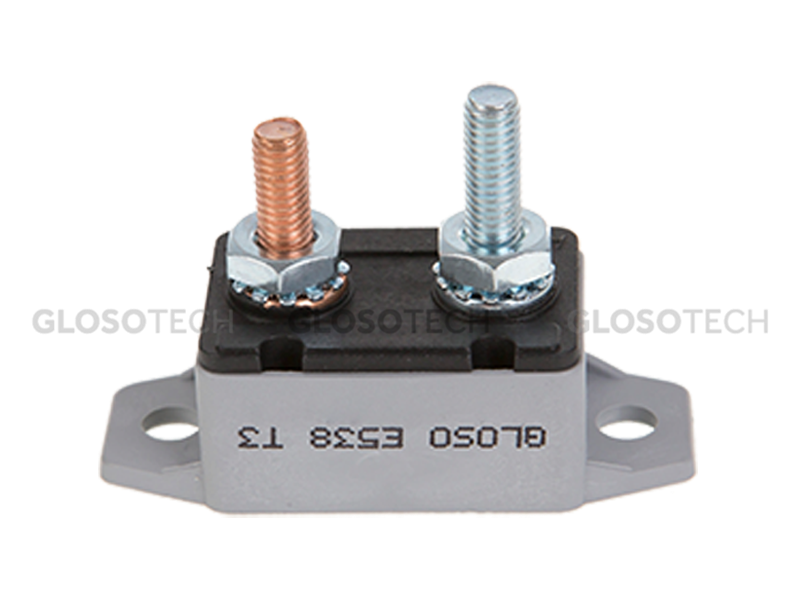

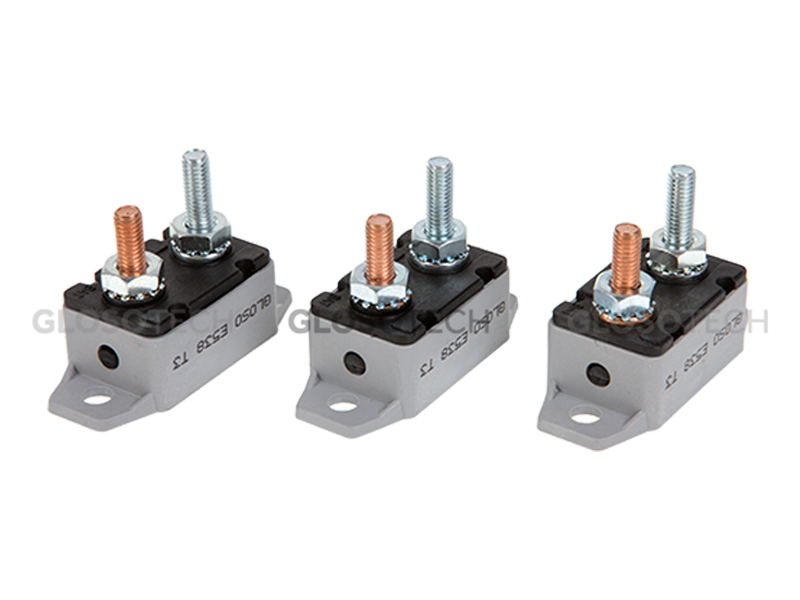

E538-20A |
||
|---|---|---|
| Part Number | E538-20-8A5-00 | |
| Description |
rocker switch 20A |
|
| Family | Thermal Circuit Protector (Breaker) | |
| Category | E5 | |
| Series | E538 | |
| Voltage | 28Vdc | |
| Rated Current | 20A | |
| Mounting | Parallel (Lengthwise) Mounting Bracket | |
| Reset Type | T3, Manual Reset | |
| Operating Temperature | -40ºC (-40ºF) to 85ºC (185ºF) | |
| Interrupt Capacity | ,500A @ 14Vdc | |

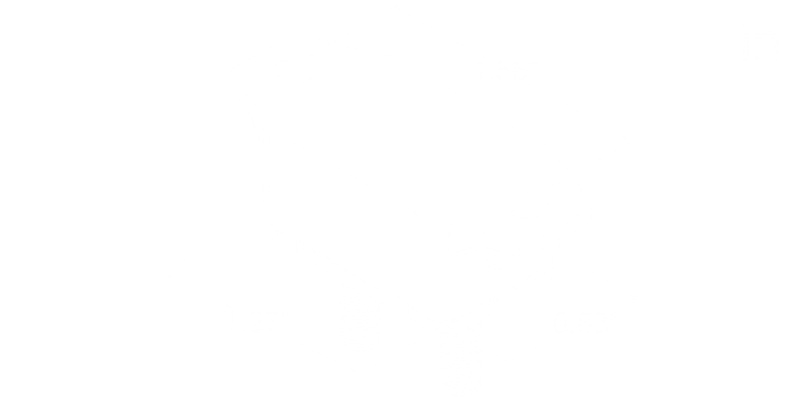

| Dimension |
Length: 1.27" Width: 0.83" Height: 0.669" Unit: inch |
|
| Weight | 22 g | |
| RoHS | Y | |
| Standard Pack | 300 | |
| Termination | #10-32 Thread | |
| Body | Plastic | |
| Storage Temperature | -40ºC (-40ºF) to 125ºC (260ºF) | |
Length: 1.27"
Width: 0.83"
Height: 0.669"
Unit: inch
