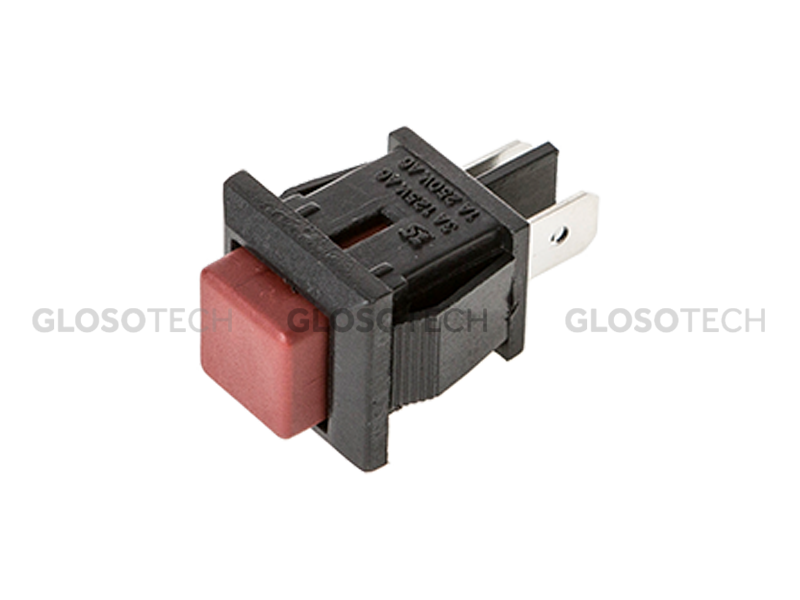

P1 |
||
---|---|---|
Part Number | P1 | |
Description | ||
Family | Switches | |
Category | Push Switches | |
Series | P1 | |
RoHS | Y | |
Regulatory Compliance Summary | UL; TUV; CE; RoHS | |
Termination | 0.189"(4.8mm) QC | |
Circuit |
SPST: NO NC ON-OFF |
|
Rating |
P11&P12: 3A/125Vac 1A/250Vac P13 6A/250Vac 10A/125Vac |
|
Body Color | Black | |
Cover Color | Black; Green; Red |
